| Category | Descriptions | |

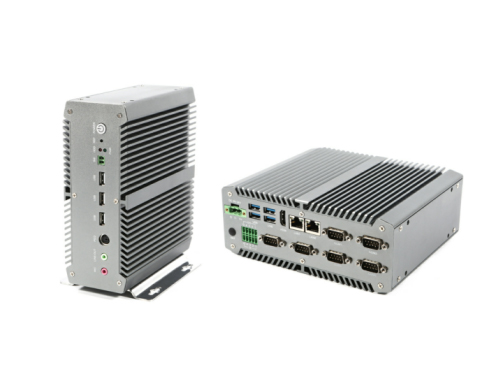

| Model(型號) | No. | YL-6016 |
| 核心模塊 Nucleus Module | CPU | Intel? Celeron? Processor 3855U (Dual Core Dual Threads 2M Cache, 1.6 Ghz) |
| Intel? Core? i5-6200U Processor (Dual Core Quad Threads 3M Cache, Max 2.8 Ghz) | ||
| Chipset | Intel? Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB , up to 8GB | |
| Storage | 1*mSATA slot (64G/128G/256G SSD Optional) | |
| Graphic | Integrated Intel? HD Graphics 510/520 | |
| Network |
2*Intel? Ethernet Controller I211AT 1000M lan (Support Intel? Ethernet Controller I210 Series) | |
| I/O(接口) | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 4*USB3.0, 3*USB2.0 and 1*USB2.0 in built | |
| Display | 1*HDMI | |
| COM | 6*COM (support RS-232/422/485) | |
| SPK | 1*Line-out | |
| Mic | 1* Mic-in | |
| Button | 1*Power button, 1*Reset switch | |
| Indicator | 1*Power indicator, 1*HDD indicator | |
| Phoenix | 1*3pin Phoenix terminal power input | |
|
1*10pin Phoenix terminal GPIO interface (with opto-couplers isolation function) | ||
| Expansion | 1* mini-PCIe(support WIFI/3G/4G module, optional) | |
| OS(系統) | Operating System | Windows 7/8/10, Linux |
| Structure(機構) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | 2 brackets for wall or rack mounting | |
| Dimensions | 232 * 160 * 75 mm / 9.13 * 6.30 * 2.95 Inch (WxDxH) | |
| Weight | 2.24KG(N.W.) | |
| Power(電源) | DC In | DC 9-24V power supply and AC power adapter |
| Temperature & Humidity(溫/濕度) | Working Temp. | -20~ 60°C (-4°F~140°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 5% - 95% relative humidity(Non-condensing) | |
| Cert.(認證) | Safety | CE, FCC, RoHS |
| Packing(包裝) | Items | box pc, power adapter, power cord, CD driver brackets(Optional) |
